IoT Device
Every meter, online, every second.
Connects any Arrowmech flow meter with RS-485 output to the Arrowmech cloud — readings visible on the web dashboard and the Arrowmech Flow Meter mobile app. WiFi and 4G LTE both built in, with a built-in display, live monitoring every second, and hourly readings retained for history. One flow meter per module.
WiFi + 4G LTE built in
One model, both radios — 4G/VoLTE SIM for remote sites, WiFi where network exists.
Built-in display
Shows the total flow value transmitted to the server — readout at the device, no phone needed.
Any Arrowmech meter
Pairs with AEFM, AVFM, ATFM & AUFM via RS-485 — one flow meter per module.
Live every second
Live values monitored every second; historical readings retained hourly.
The bridge between your pipe and your phone.

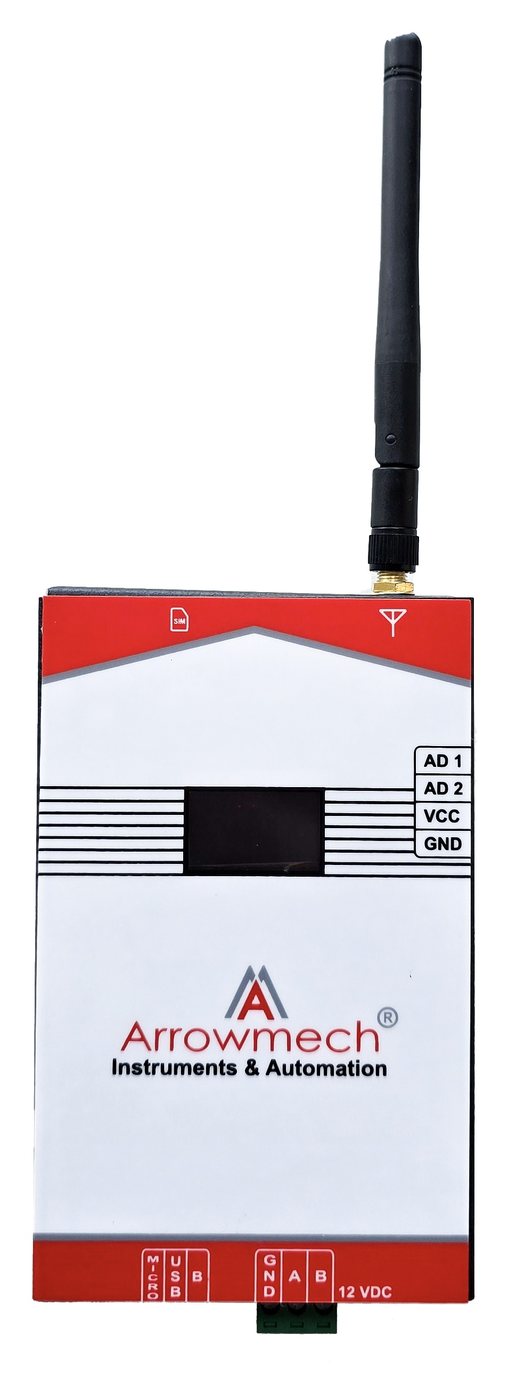

The AIOT-100 is a single model with WiFi and 4G LTE both built in — no variant to choose. It reads any Arrowmech flow meter with an RS-485 output (AEFM-100, AVFM-100, ATFM-100, AUFM-100), one flow meter per module, and streams readings to the cloud. The built-in display shows the total flow value transmitted to the server.
Data lands on the web dashboard and the Arrowmech Flow Meter app for iOS and Android — with alerts, trends, and multi-site views. DIN-rail mounted, powered from 12 V DC (230 V AC adapter supplied), and configured through a web interface.
Where the AIOT-100 earns its place.
Full specifications —
AIOT-100
The complete technical envelope for the AIOT-100 platform. Material and option combinations are configured per application — request a quote with your process details for a tailored configuration.
Connectivity
| Internet | WiFi + 4G LTE built in · LAN (optional) |
| SIM | 4G / VoLTE |
| Antenna | External |
| Meter input | RS-485 |
| Live monitoring | Every 1 second |
| Historical retention | Hourly readings |
Device
| Display | Built-in |
| Power | 12 V DC input · 230 V AC adapter supplied |
| Mounting | DIN-rail |
| Analog inputs | AD1 / AD2 (provisional) |
| Service port | Micro-USB |
| Configuration | Web-based |
Compatibility
| Flow meters | Any Arrowmech meter with RS-485 output — AEFM-100, AVFM-100, ATFM-100, AUFM-100 |
| Meters per module | One |
Cloud & App
| Monitoring | Web dashboard + Arrowmech Flow Meter app (iOS / Android) |
| App subscription | ₹6,000 / year per client, unlimited devices |
Readings from the AIOT-100 land in the Arrowmech Flow Meter app — alerts, trends, and multi-site views on iOS and Android.
See the mobile appDownloads
Gate-free PDFs. No forms, no email gates.
Other flow measurement solutions.
Not sure which flow meter
fits your application?
Send us your process details — flow rate, pipe size, media — and our engineers will recommend the right model and configuration.
