Precision measurement for conductive liquids — no moving parts, no pressure drop, full-bore accuracy.
Built for water, wastewater, chemicals, slurries, and any electrically conductive medium. Designed and calibrated in our Surat facility against ISO 9001 standards.
Pricing depends on line size, process conditions and configuration — send your requirement and get a quotation from our engineers.
Replies within 30 minutes during business hours (Mon–Sat, 10:00 AM – 6:30 PM IST). Assembled, tested and calibrated by Arrowmech in Surat, India — supplied pan-India and for export.
Zero wear, zero pressure loss, minimal maintenance over decades of operation.
DN15 to DN500 with flanged and sanitary connections for any pipe.
Water, slurries, acids, alkalis — any electrically conductive fluid.
4–20mA (isolated), RS485, and pulse standard — HART available on request. Built-in surge protector.
Forward and reverse flow across the full 0.2 – 12 m/s velocity range.
Flags an empty or partially filled pipe instead of reporting false flow.
Automatic 'zero' calibration and low flow cutoff, with a resettable totalizer.
m³, kg, or litres — per hour, minute, or second, selectable on the meter.
An electromagnetic flow meter generates a magnetic field across a non-magnetic pipe section. As conductive fluid passes through, it induces a voltage proportional to flow velocity — picked up by a pair of electrodes flush with the pipe wall. No obstruction in the flow path, no moving parts, no pressure drop.
Each AEFM-100 is wet-flow calibrated against traceable national standards before dispatch. The full-bore design tolerates abrasive slurries, aggressive chemicals, and CIP cleaning cycles. PTFE, PFA and rubber liner options cover virtually every process condition you'll encounter — from raw effluent to high-purity WFI.
Why the technology fits — engineering reasons, not marketing ones. All facts below are from the AEFM-100 datasheet.
The full-bore design has no obstruction to foul or clog, so raw sewage, industrial and domestic effluent pass with zero pressure drop. PTFE or rubber lining is standard, and electrode options from SS316L to Hastelloy C, Titanium, Tantalum and Platinum resist aggressive effluent chemistry — including acidic, alkaline and salt-laden streams such as brine and sea water, with the appropriate lining.
Bidirectional measurement across 0.2–12 m/s, empty-pipe detection, automatic zero and low-flow cutoff make the meter dependable for plant water balance — cooling circuits, heat exchangers, and supply headers where a false reading from a part-filled pipe is not acceptable.
Measures any conductive water from ≥10 µS/cm — borewell, raw and potable supplies — with DN15 to DN500 covering delivery lines end to end. Electromagnetic meters need a conductive medium: for DM or RO water, use the clamp-on AUFM-100 ultrasonic flow meter instead.
Flow ranges at 0.3–10 m/s velocity, from the AEFM-100 datasheet. For sizing at your operating flow, send your process details — our engineers confirm the right DN.
| DN (mm) | Flow range (m³/h) |
|---|---|
| DN 15 | 0.19 – 6.35 |
| DN 20 | 0.33 – 11.34 |
| DN 25 | 0.52 – 17.66 |
| DN 32 | 0.86 – 29.93 |
| DN 40 | 1.35 – 45.21 |
| DN 50 | 2.12 – 70.65 |
| DN 65 | 3.58 – 119 |
| DN 80 | 5.43 – 180 |
| DN 100 | 8.48 – 282 |
| DN (mm) | Flow range (m³/h) |
|---|---|
| DN 125 | 13.25 – 441 |
| DN 150 | 19.08 – 635 |
| DN 200 | 33.91 – 1,130 |
| DN 250 | 52.99 – 1,766 |
| DN 300 | 76 – 2,543 |
| DN 350 | 103 – 3,461 |
| DN 400 | 135 – 4,521 |
| DN 450 | 171 – 5,722 |
| DN 500 | 211 – 7,065 |
Full velocity/accuracy detail in the datasheet
The complete technical envelope for the AEFM-100 platform. Material and option combinations are configured per application — request a quote with your process details for a tailored configuration.
| Principle | Electromagnetic induction (Faraday's law) |
| Accuracy | ±0.5% of measured value |
| Repeatability | ±1% of span |
| Response time | 0.3 second |
| Minimum conductivity | ≥10 µS/cm |
| Pipe size | DN15 to DN500 (½" to 20") |
| Process temperature | Up to 150°C (PTFE liner) |
| Ambient temperature | 0°C to 55°C |
| Pressure rating | 16 kg/cm² |
| Flow velocity | 0.2 – 12 m/s (Bidirectional) |
| Internal lining | PTFE / Rubber (standard) · PFA available on special order |
| Electrode options | SS 316L / Hastelloy C / Titanium / Tantalum / Platinum |
| Connection | Flange ANSI 150 (standard) · Sanitary Tri-clamp available on request |
| Body material | Carbon steel / Stainless steel SS304 / Stainless steel SS316 |
| Output signals | 4–20mA (isolated), RS485, Pulse (standard) · HART available on request |
| Power supply | 230V AC or 24V DC |
| Processor | ARM microprocessor |
| Electronic housing | Die-cast aluminium, IP65 |
| Protection class (transmitter) | IP67 |
| Display | Backlit LCD, multiple information |
| Approvals | CE, ISO 9001 |

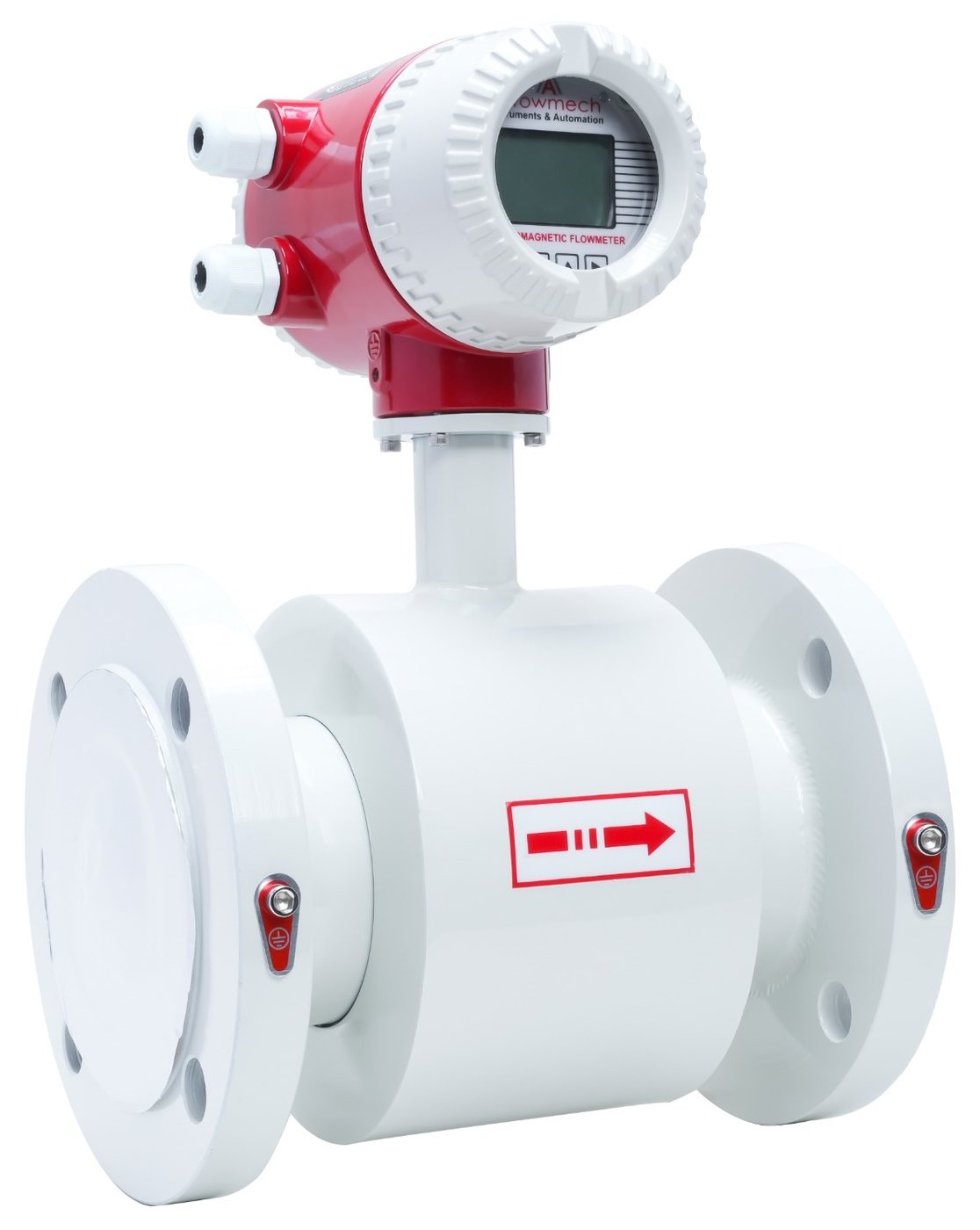

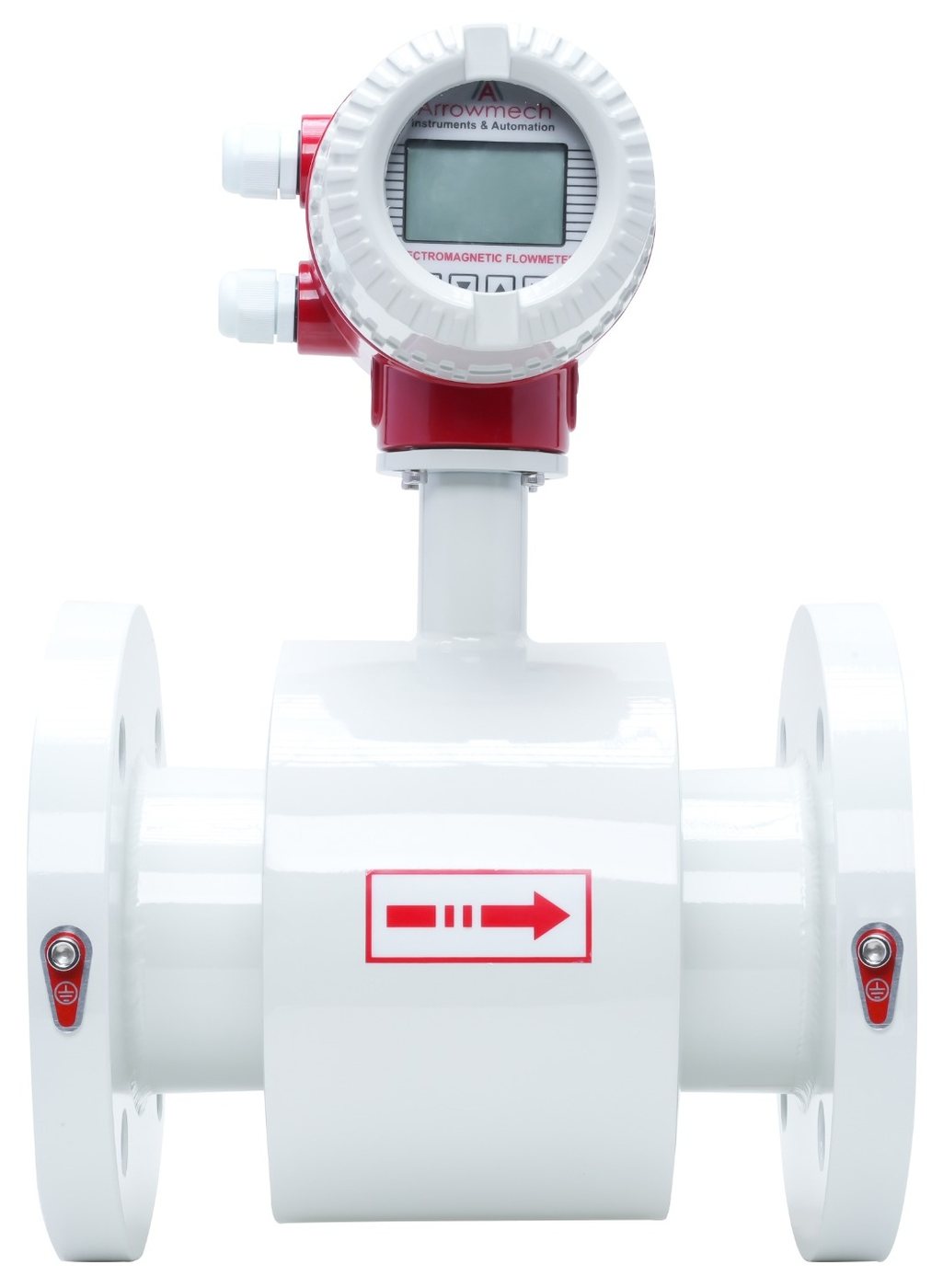

Transmitter mounted directly on the meter body. Ideal for accessible installations with stable ambient conditions.

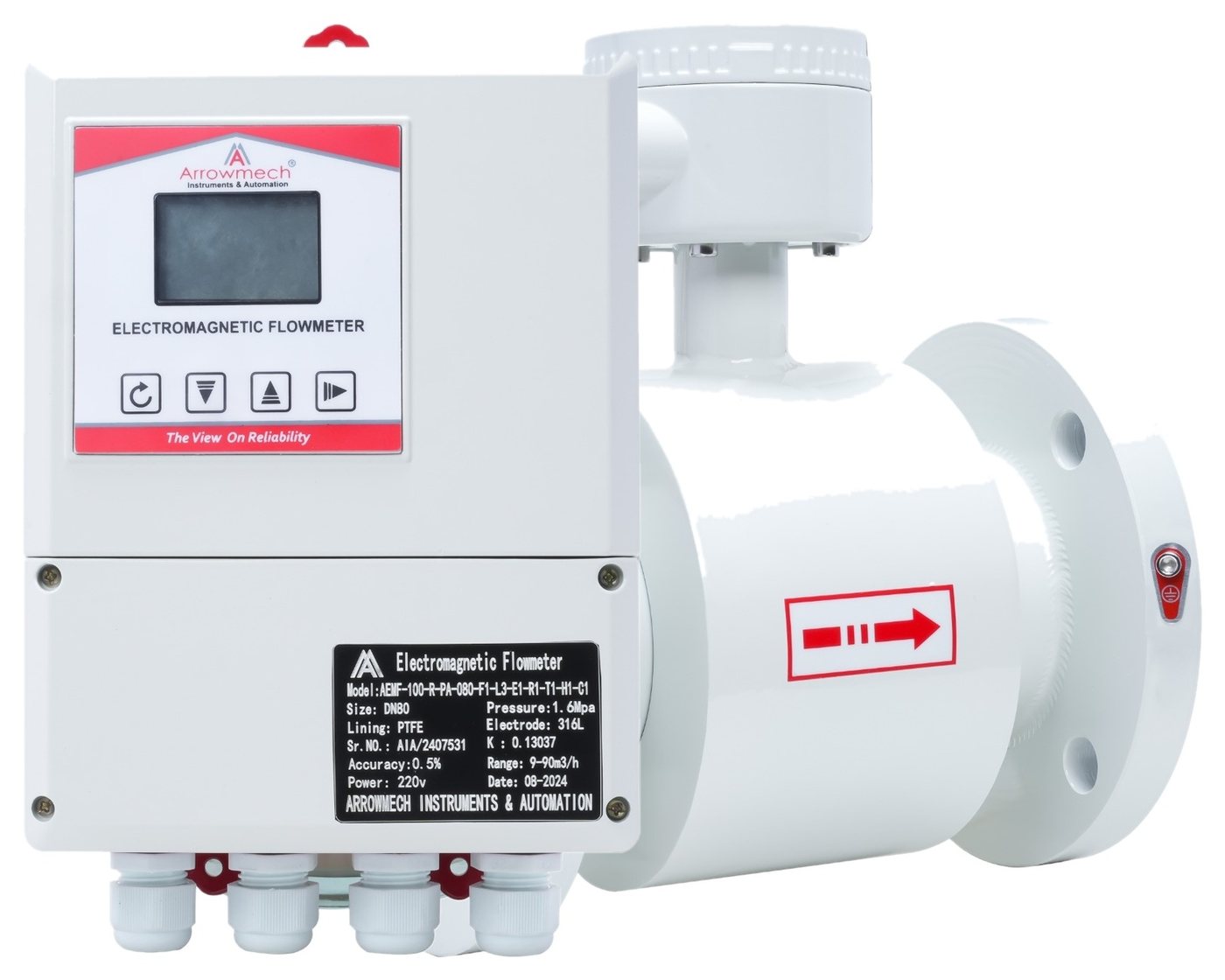

Wall-mounted transmitter connected by cable. Use for inaccessible installations, high-temperature pipes, or operator-friendly readout locations. Standard 10m cable supplied; up to 80m per ordering code.
Gate-free PDFs. No forms, no email gates.
Send us your process details — flow rate, pipe size, media — and our engineers will recommend the right model and configuration.
